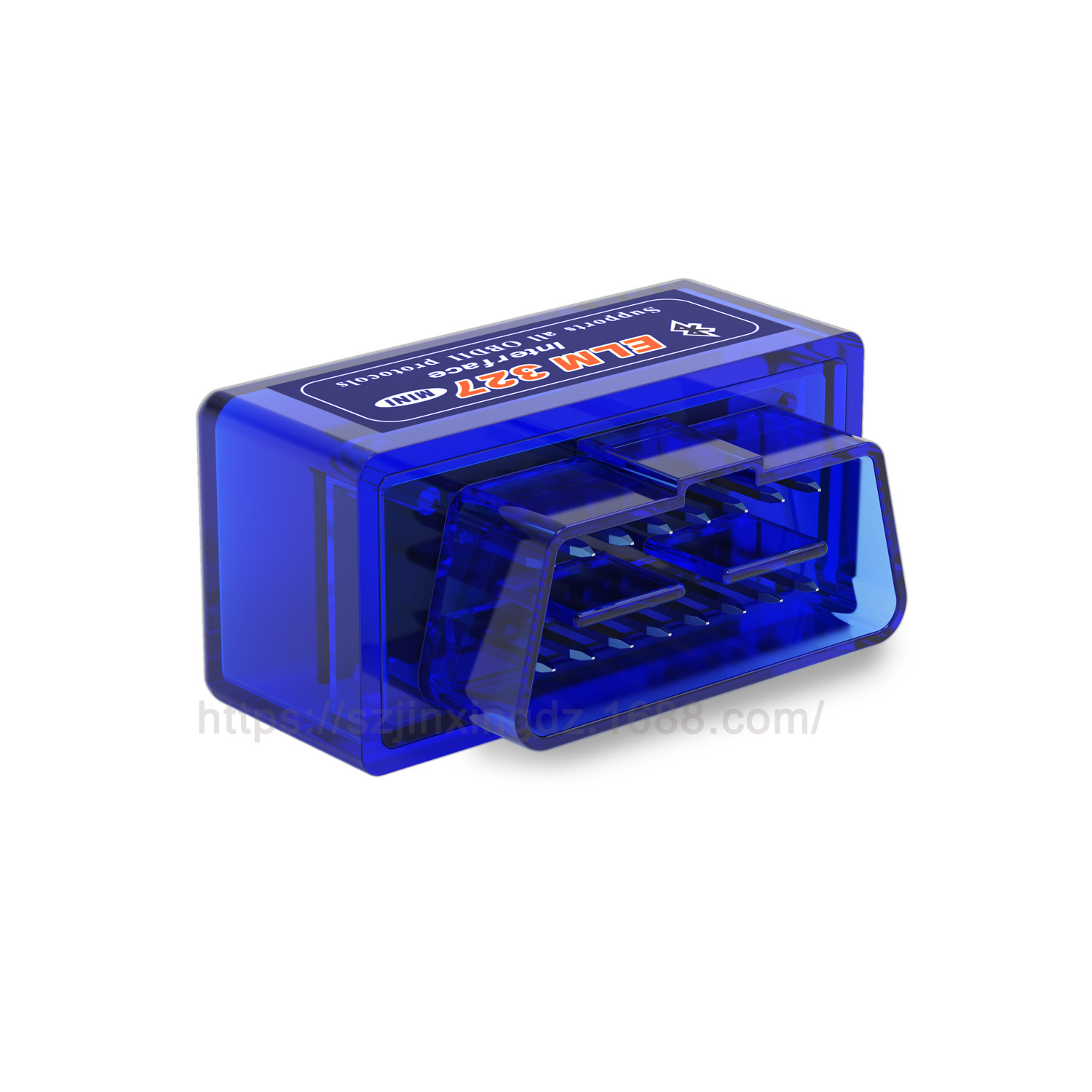

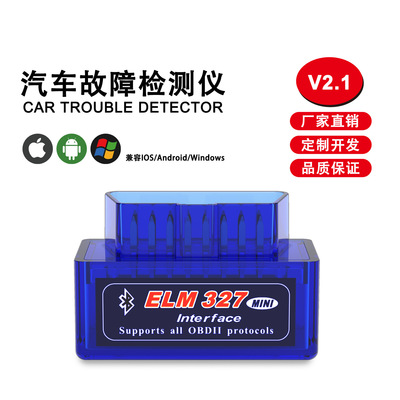

藍牙4.0 OBD II

1.產品參數：
通訊方式: 藍牙 4.0
主控芯片：ST
軟件平臺: 支持 Android /iOS/ Windows
工作電壓: 9V~16V
工作電流: 35mA
待機電流: 25mA
工作溫度: -40℃~85℃
工作濕度: 小于 60%
產品尺寸: 48mm*24mm*32mm

2. 軟件可以進行以下操作：
讀取錯誤診斷碼——通用和廠家特用的，并顯示他們的含義（數據庫擁有超過 3000 個的通用代碼定義）
清除錯誤碼并關滅 MIL（“檢查引擎”指示燈）
顯示電流傳感器數據，包含：
引擎每分鐘轉速（RPM）
計算后的負荷值
冷卻液溫度
燃料系統狀態
車速
短期燃料情況
長期燃料情況
進氣歧管壓力
噴油提前時間
進氣溫度
空氣氣流速度
節流閥絕對位置
與短期燃料狀態關聯的氧氣探測電壓
燃料系統狀態
燃料壓力
燃油消耗量監測還有很多其他數據……

3. OBDII 支持的協議：
1. ISO9141-2(5 baud init, 10.4Kbaud)
2. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
3. ISO14230-4 KWP (fast init, 10.4 Kbaud)
4. ISO15765-4 CAN (11bit ID, 500 Kbaud)
5. ISO15765-4 CAN (29bit ID, 500 Kbaud)
6. ISO15765-4 CAN (11bit ID, 250 Kbaud)
7. ISO15765-4 CAN (29bit ID, 250 Kbaud)

4. 軟件平臺
安卓版本： Torque, OBD Car Doctor,DashCommand,Auto Doctor
蘋果iOS 版本： Auto Doctor, Dashcmd, OBD Car Doctor
Windows 版本: ScanMaster-ELM

Bluetooth 4.0 OBD II
Works on all 1996 and newer gasoline car sold in the United States, some 1994 and 1995 models are also ok, including all American, European, and Asian vehicles.OBD II software for ELM327 is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.The program is very userfriendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer's hard drive, and you're ready to go. To uninstall the program, simply delet the entire contents of the folder wher the program resides.

Multi-Protocol Support:
1. ISO9141-2(5 baud init, 10.4Kbaud)
2. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
3. ISO14230-4 KWP (fast init, 10.4 Kbaud)
4. ISO15765-4 CAN (11bit ID, 500 Kbaud)
5. ISO15765-4 CAN (29bit ID, 500 Kbaud)
6. ISO15765-4 CAN (11bit ID, 250 Kbaud)
7. ISO15765-4 CAN (29bit ID, 250 Kbaud)

The program lets you perform the following operations:
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning
(over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including:
4. Engine RPM
5. Calculated Load Value
6. Coolant Temperature
7. Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11. Intake Manifold Pressure
12. Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15. Absolute Throttle Position
16. Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status 18. Fuel Pressure AND Many others...

Compatible software:
Android: Torque, OBD Car Doctor,DashCommand, Auto Doctor etc
iOS: Auto Doctor, Dashcmd, OBD Car Doctor etc
Windows: ScanMaster-ELM etc

Connection Way: Bluetooth

Support systems: For iOS/Android/Windows
