產(chǎn)地	深圳	是否進(jìn)口	否	訂貨號	vgate
加工定制	否	貨號	vs890	類型	汽車故障檢測儀
檢測系統(tǒng)	手持式讀卡器	電源電壓	12（V）	工作溫度	低于40（℃）
尺寸	250150x50（mm）	品牌	vgate	型號	vs890





Vgate Scantool Maxiscan VS890,Application layer fully complies with ISO 15031 and is compliant with SAE J1979. Supports a large number of vehicles made by 70 manufacturers.



Languages:Spanish, Portuguese, Korean, Japanese, Italian,Hebrew, German, French, Finnish, English, Dutch,Danish and Chinese.



Vgate Scantool VS890



Supported Languages: Spanish, Portuguese, Korean, Japanese, Italian,Hebrew, German, French, Finnish, English, Dutch,Danish and Chinese.



VS890 Description:

Multi-language user interface, supports up to 13 languages

Application layer fully complies with ISO 15031 and is compliant with SAE J1979.

Fully functional Mode$01~Mode$09 operation.

Supports  a large number of vehicles made by 70 manufacturers.

DTC includes  generic (P0, P2, P3, B0, U0 and C0) & manufacturer specific (P1, P3, B1,B2 ,U1 and C1,C2,) codes.



VS890 Main Menu：



Supported Protocol:

SAE J1850 PWM

SAE J1850 VPW

ISO9141

KWP FAST INIT

KWP 5BAUD INIT

CAN 11BIT 500K

CAN 29BIT 500K

CAN 11BIT 250K

CAN 29BIT 250K

CAN_USER1 11B 125K

CAN_USER1 29B 125K

CAN_USER2 11B 50K

CAN_USER2 29B 50K

Full CAN BUS support for new cars

11 Bit and 29Bit CAN

Capable of communicating with multi-ECU System



VS890 Feature:

1. Color: Scarlet ,dark blue, Pearl Blue,Green Blue,metal Black,Orange

2. LCD:3 inch black mask LCD, wide visible area, high contrast .The contents is readable even in strong sun shine.

3. ABS+PC Engineer Plastic Housing (passed 6-meter free fall test.)

4. Harmless fade-resistant paint.

5. Rubber oil sprayed housing; slide, dirty, and vibration proof.

6. Passed EMI/EMC test.

7. High quality PET 6-key film keypad.(3M harmless glue)

8. CE,FCC,RoHs Certified

9. Support manually input DTC Look-up

10. Read DTCs

11. Clear DTCs

12. Data stream

13. Freeze frame

14. I/M Readiness

15. O2 Monitor Test

16. On-Board Mon Test

17. Component Test

18. Vehicle Info.

19. Modules Present

20. Unit of Measure

21. State Emission

22. Read All DTCs

23. Read Stored DTCs

24. Read Pending DTCs

25. Detailed help information

26. Capable of showing probable cause of a DTCs.

27. Reset engine MIL

28. This operation will  erase all DTCs , freeze frame Data , oxygen sensor data, and reset  IM Monitors and MIL.

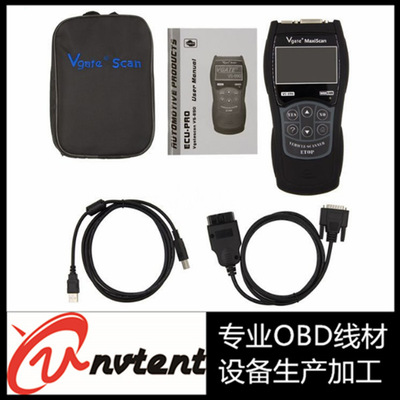

Packing List:

1 pc * VS890 Main Unit

1 pc * User manual

1 pc * OBD2 Cable

1 pc * USB cable
